Quick Details

  • Condition: New
  • Type: Paper Cutting Machine
  • Computerized: Yes
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: DP
  • Model Number: DP-1000RQ
  • Voltage: 380V 50HZ 3Phase
  • Power(W): 2.2kw
  • Dimension(L*W*H): 1600X1000X1700mm
  • Weight: 350KG
  • Certification: SGS/CE
  • Warranty: 12 month
  • After-sales Service Provided: Engineers available to service machinery overseas
  • application: automatic hot knife cutting machine for PVC PP PET
  • cutting width: 1-1000mm
  • Cutting speed: 65cycles/min
  • video link: https://youtu.be/4l9zWCdr1TI

Packaging & Delivery

Packaging Details wooden case packing , automatic hot knife cutting machine for PVC PP PET
Delivery Time Shipped in 25 days after payment

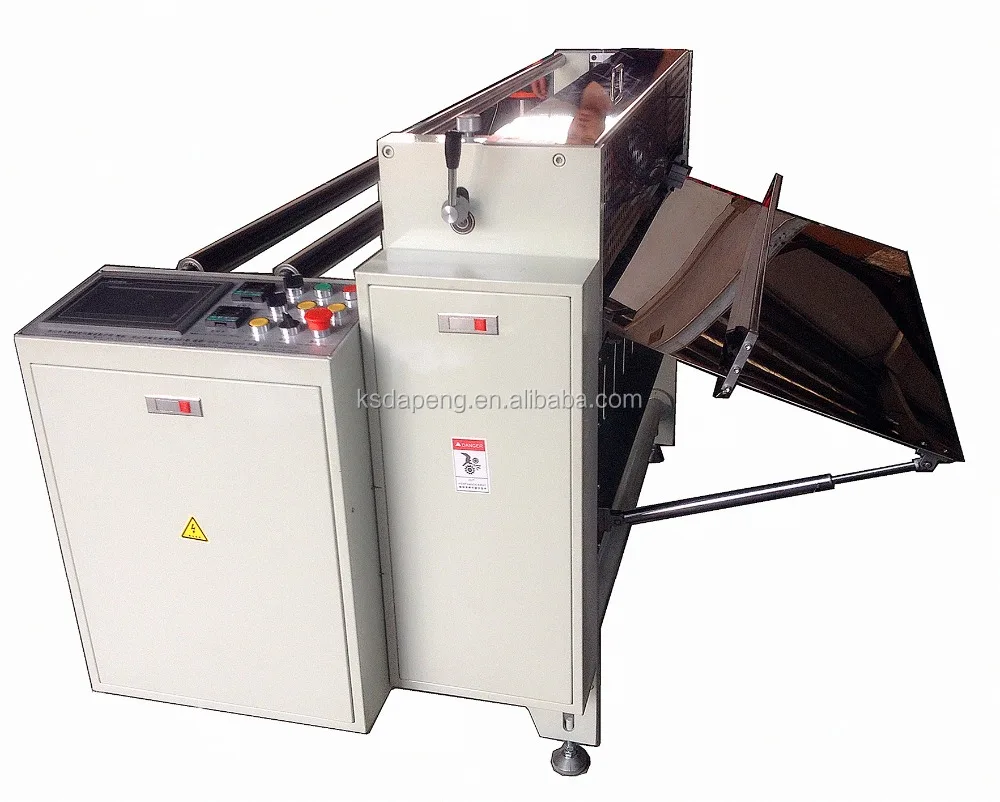

DP- 1000 roll to sheet cutter with heating blade  automatic hot knife cutting machine



FUNCTIONAL CHARACTERSTICS

This machine employs microcomputer PLC controller and touch spanel to set belt cutting length ,

and is ergonomically designed ,Operation is easy ,



the depth adjustable knife performs complete cutoff and half cutoff function , For half cutoff (kiss cut),

the thickness of intact material is adjustable



With heating blade to cut material good , with touch rod to control material feeding and cutting



Purpose

It is applicable for the cutting of PVC ,film, insulation sheet, Mylar, foam, industrial tape,

electronic tape and various inch setting, entirely broken and partially broken electronic materials.



Main technical parameters for automatic hot knife cutting machine:
ModelDP-1000
Voltage380V 50 HZ
Power4HP
G.W. 1800KG
Sheeting Length                 0.1-9999.9mm
Sheeting width1-1000mm
cutting thickness 0.05-12mm
Sheeting precision±0.05mm
Machine size1460*800*1060mm



automatic hot knife cutting machine

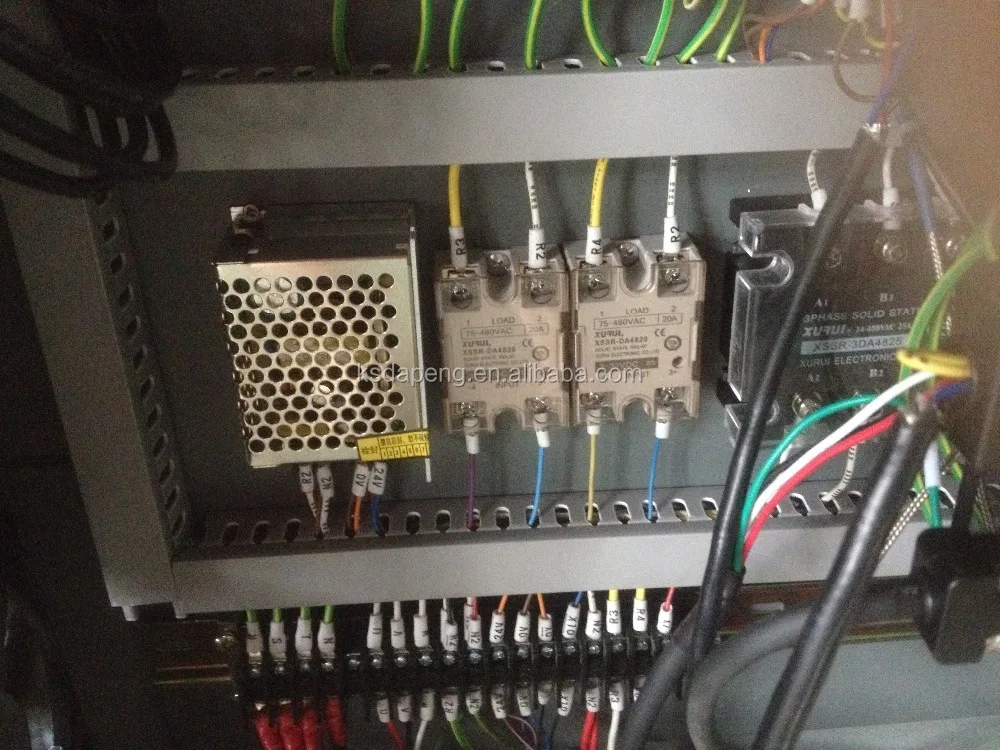

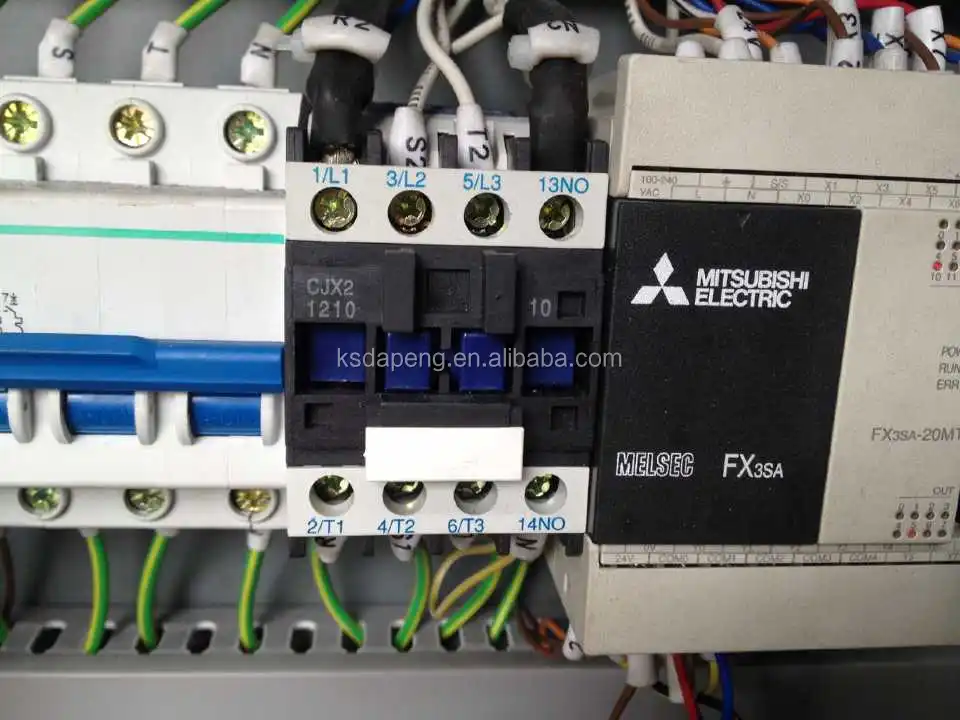

   Electrical listing :
Touch Screen KUNLUNMade in China
Programmable Controller MITSUBISHIMade in Japan
Servo Driver YASKAWAMade in Japan
Servo Motor YASKAWAMade in Japan
Motor of cutting knife TPGMade in Japan
AC Contactor RENMINMade in China
Solid State Relay 20AGuguang Made in China
cutting blade safety coverPlastic PC materialMade in China

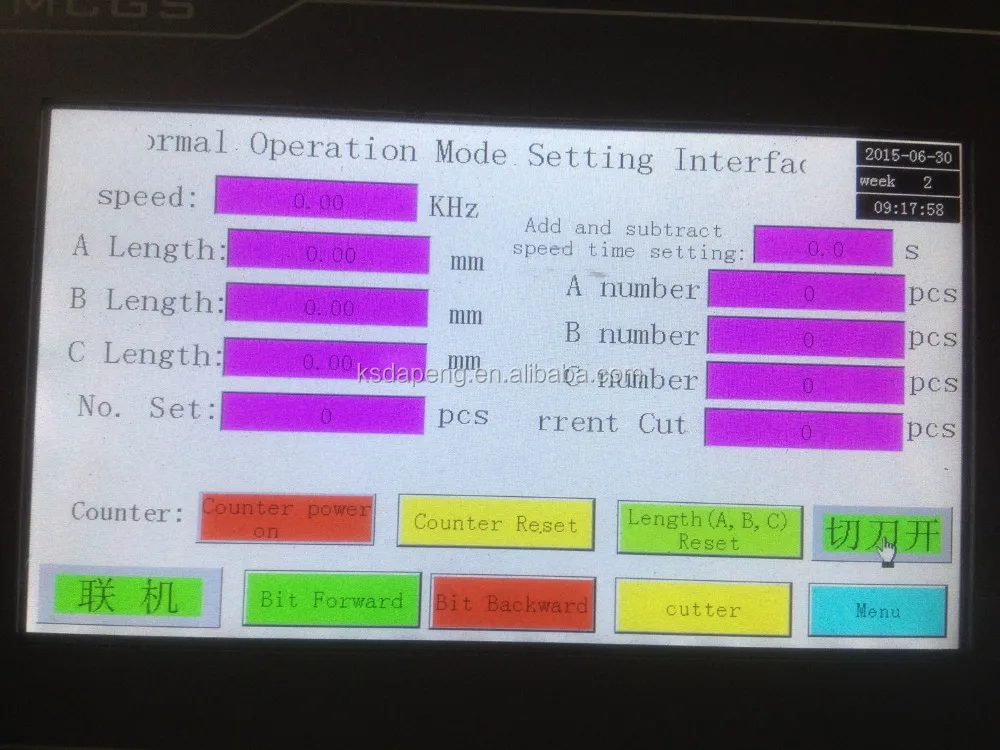

Main functions of automatic hot knife cutting machine:

  1. Feed material and return material by pressing the button on touch screen
  2. Preset total cutting quantity
  3. Preset cutting length
  4. Preset cutting speed
  5. Return to ZERO
  6. heating blade to high degree.



After-service:

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory

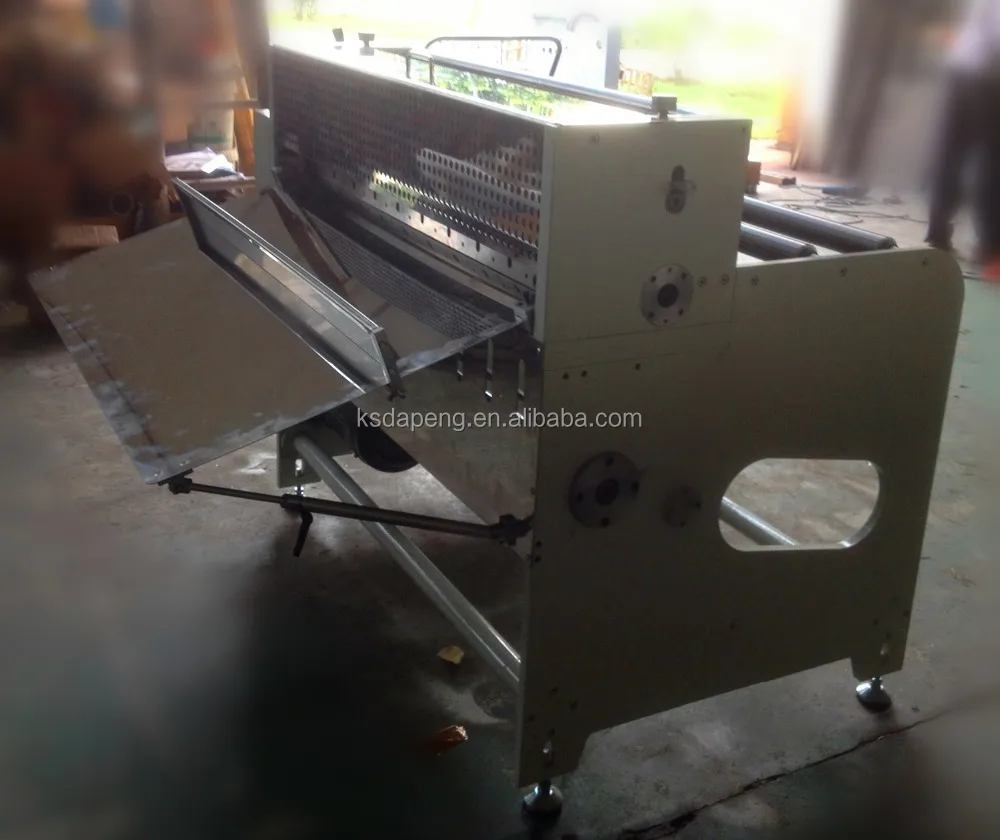

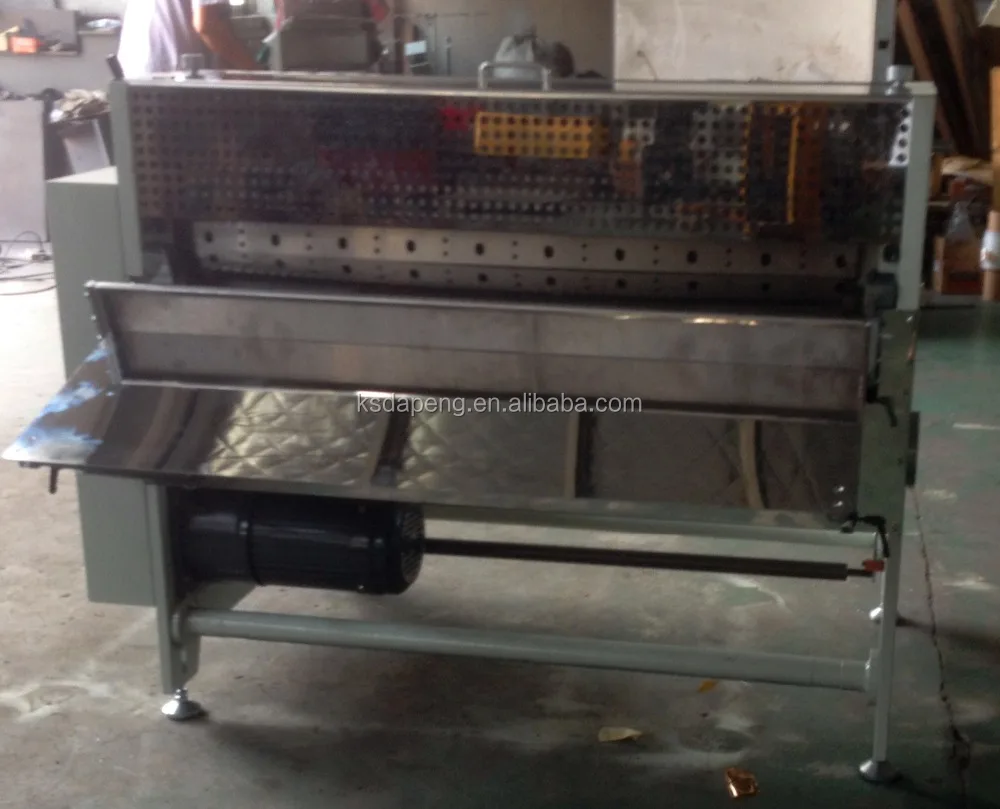

blade part of    automatic hot knife cutting machine

  automatic hot knife cutting machine

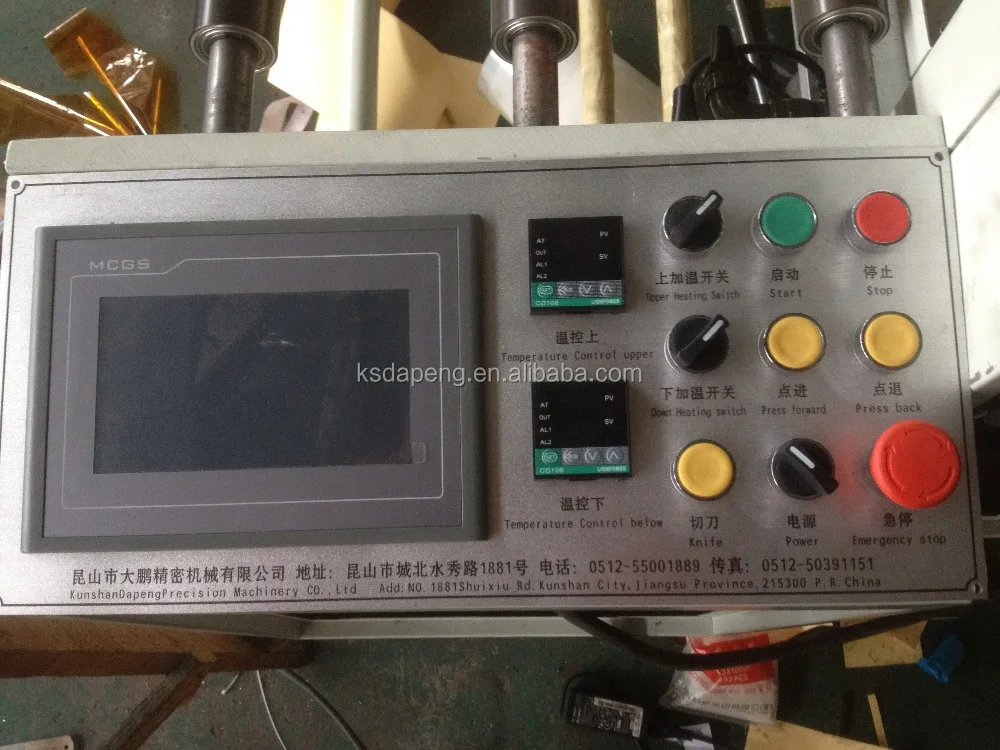

Touch panel instruction :


Temperature Control upper : mean to adjust the upper blade of temperature when cutting

Temperature Control Below : mean to adjust the down part of heating blade temperature when cutting

Upper Heating Switch : mean to open or off the upper heating blade  heating or not

Down Heating Switch : mean to turn on or off the down part heating blade heating or not

Knife : mean the cutting blade

Start : press it to let machine start cut

Press Forward : Mean press one time , the material pulling forward one time

Power : Mean to open the machine or turn off machine

Stop: Mean blade stop cut

Press back: Mean press one time , the material pulling back one time

Emergency stop : mean machine stop at emergency status


Different customers has different requirement, It is the best if customers can supply us the complete requirement details.We will guide customers to confirm the details as much as possible if they can't send us the complete demand in advance. We think there is always one machine that belongs to you !

Application :
This microcomputer cutting machine is professional for sizing cutting all kinds of PVC , paper, film, foam, heat shrinkable tube, flat cable,sleeve, betl ,zipper......., widely applied in many industrial line such as in strings, belts, rolls in bag line, shoe and cap line , plastic & rubber line and other printing & package line ......

Video link of this   automatic hot knife cutting machine
https://youtu.be/4l9zWCdr1TI
